Balloon loght
1000W
imgGBC
imgGBW
imgGBS
imgGBP
MODEL GBC GBW GBS GBP
Model Cart Pentapod Stand Equipment Mount 1000W Balloon Kit
Bulb Type Metal halide Metal halide Metal halide Metal halide
No. of Bulbs 1bulb 1bulb 1bulb 1bulb
Height
(Working/Strage)		 10'7"/34'
(3,210mm/845mm)		 11'5"/40'
(3,480mm/1,015mm)		 - -
Weight 127lb.(58kg) 52lb.(24kg) 35lb.(15.4kg) 22lb.(9.7kg)
Light Coverage 160ft.(360°). 160ft.(360°). 160ft.(360°). 160ft.(360°).
Rated Volage 100-240VAC
50-60Hz		 100-240VAC
50-60Hz		 100-240VAC
50-60Hz		 100-240VAC
50-60Hz
Operating
Current		 9.3A@120V 9.3A@120V 9.3A@120V 9.3A@120V
Appropriated
generator		 1200W 1200W 1200W 1200W


Balloon light
400W
2000W
4000W
imgGB12BW
imgGB12BS
imgGB12BP
imgGB2000
imgGB4000

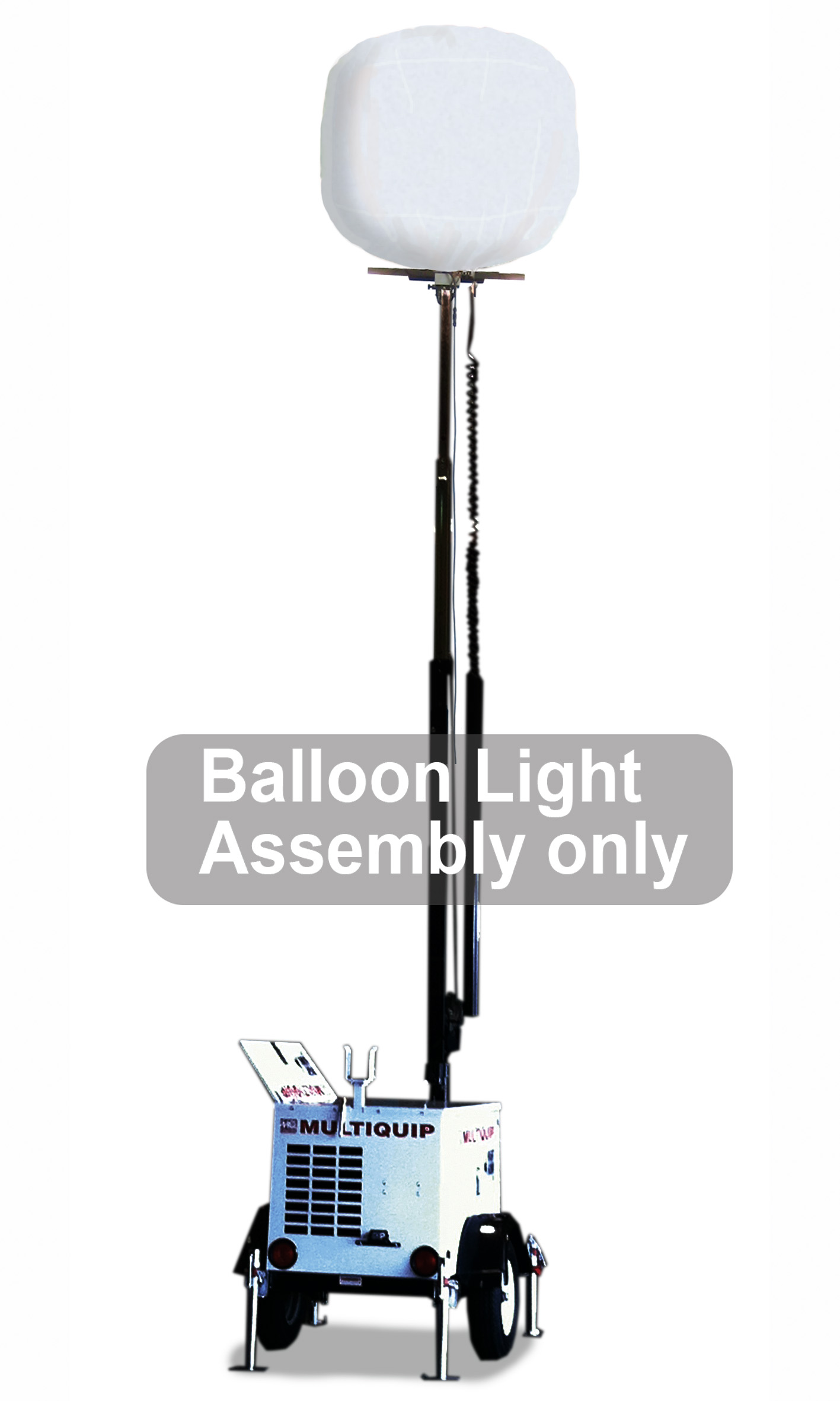

MODEL GB12BW GB12BS GB12BP GB2000 GB4000
Lighting Type Balloon Balloon Balloon Balloon Balloon
Type Tripod Stand Equipment Mount Balloon Kit Balloon Assy Balloon Assy
Bulb Type Metal halide Metal halide Metal halide MH1000W x 2 MH1000W x 4
No. of Bulbs 1bulb 1bulb 1bulb 2bulbs 4bulbs
Height
(Working/Strage)		 9'3"/4'2"
(2,828mm/1,258mm)		 - - - -
Weight
 34.4lb.(15.6kg) 39.7lb.(18kg) 17.2lb.(7.8kg) 31lb.(14kg) 48lb.(22.kg)
Light Coverage
 Dia.90ft.(27m) Dia.90ft.(27m) Dia.90ft.(27m) Dia.154ft.(47m) Dia.230ft.(70m)
Rated Volage 100-240VAC
50-60Hz		 100-240VAC
50-60Hz		 100-240VAC
50-60Hz		 238-268VAC 238-268VAC
Operating Current 4A@120V 4A@120V 4A@120V 8.2.A@240V 37.2A@240V
Appropriated generator 450W 450W 450W 2.5KW 2.5KW


LED Balloon light Spot light
300W 800W 1600W
imgGB3LED imgGB3LEDB imgGB8LED imgGB8LEDB imgGB43SC

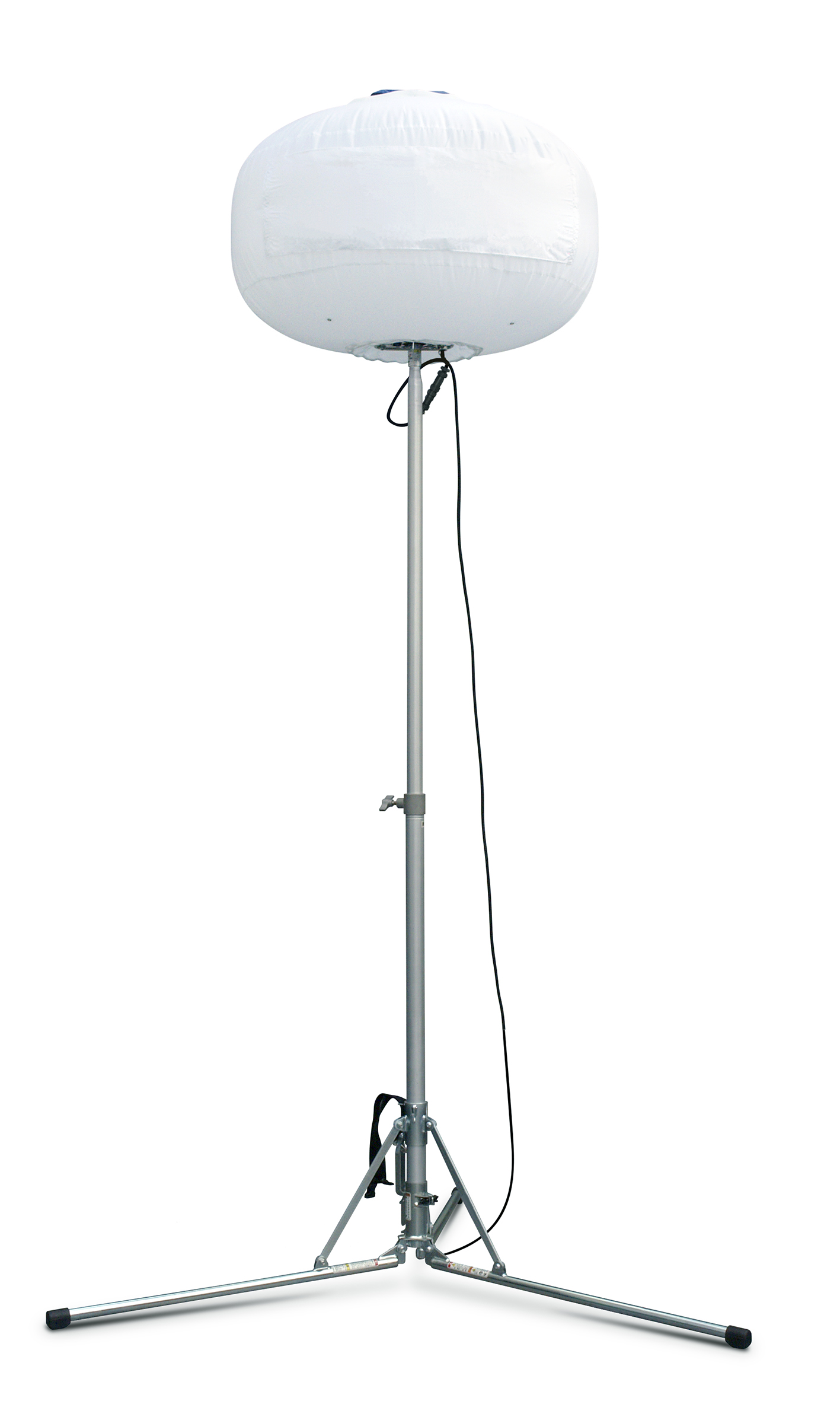

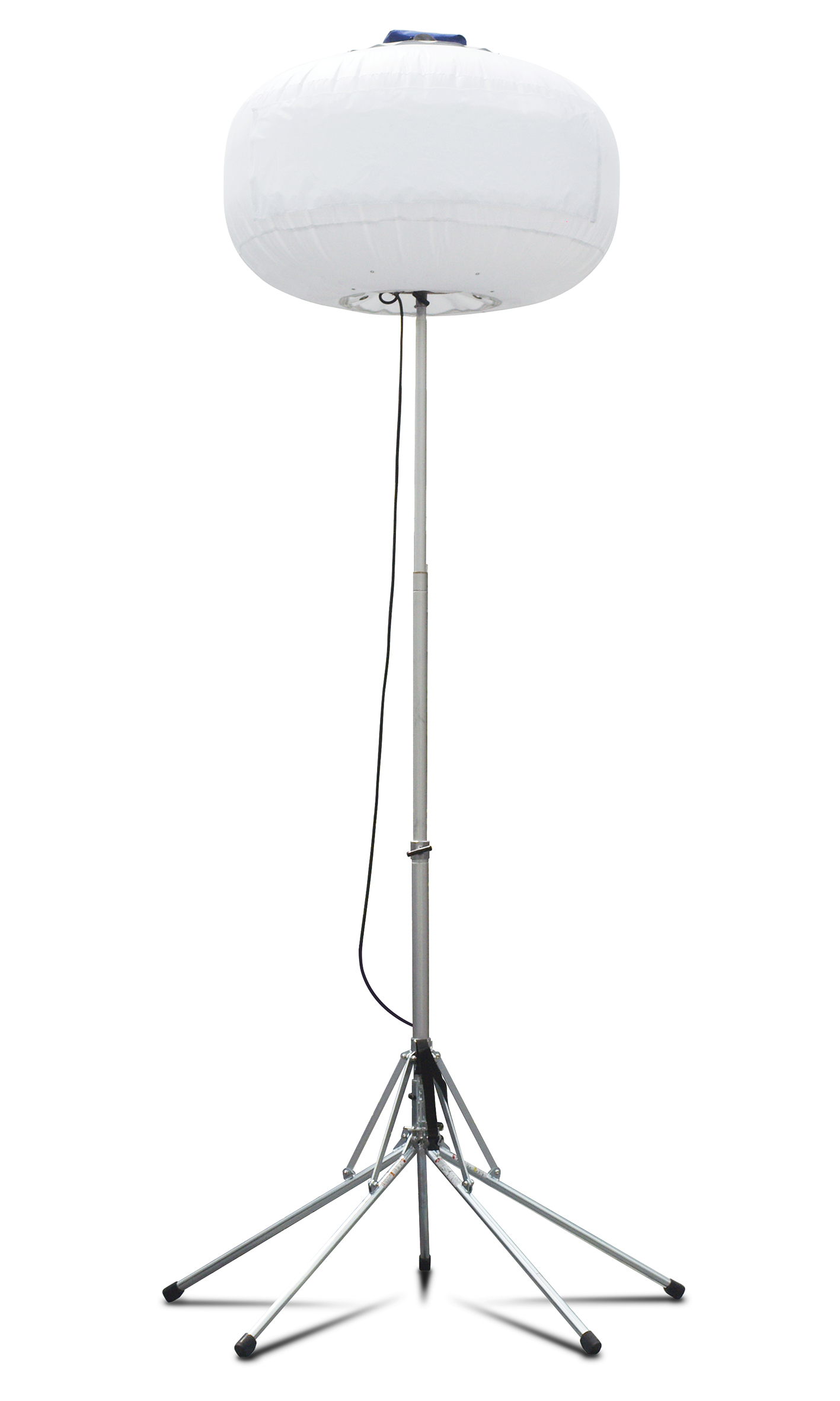

MODEL GB3LED GB3LEDB GB8LED GB8LEDB GB43SC
Lighting Type Tripod stand 300W Balloon Kit Pentapod Stand 800W Balloon Kit Cart
Type Balloon Balloon Balloon Balloon 4-Spot
Bulb Type LED LED LED LED MH400W x 4
Height
(Working/Strage)		 12.ft - 13.2ft - 13'10"/5'7"
(4,200mm/1,700mm)
Weight 27lb(13kg) 20lb(9.2kg) 48lb(22kg) 25lb(11.2kg) 364lb(165kg)
Light Coverage 62ft.(19m) - 76ft.(23m) - 100ft.(30m)
Rated Volage 115V
50-60Hz		 115V
50-60Hz		 115V
50-60Hz		 115V
50-60Hz		 120VAC/60Hz
Operating
Current		 2.7A@115V 2.7A@115V 6.9A@115V 6.9A@115V 16.0A
Appropriated
generator		 350W above 350W above 850W above 850W above 2.5kw
